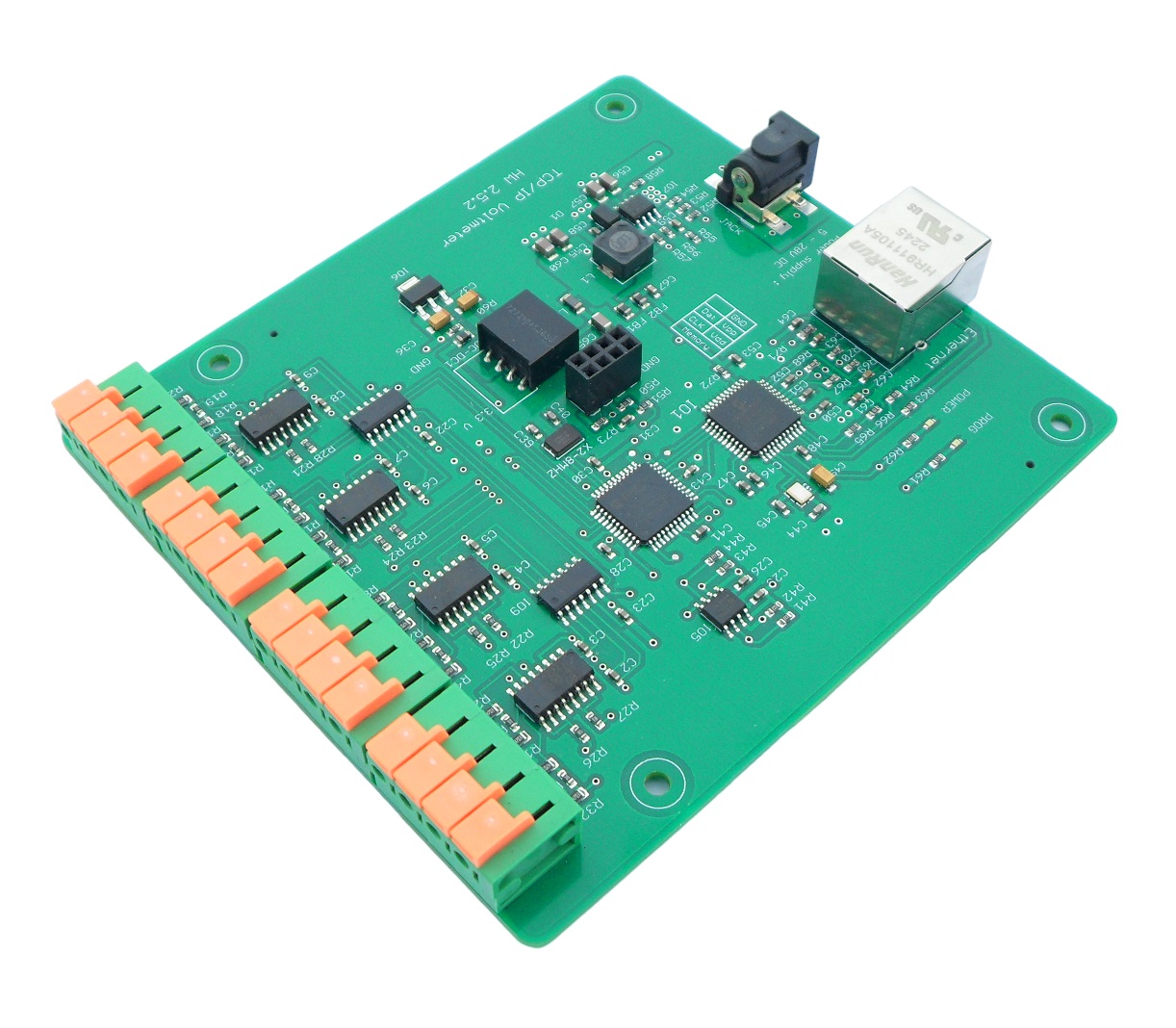

IP Voltmeter v 2.5

ip voltmeter v25

IP Voltmeter v 2.5

includes:
8 analog inputs

The IP voltmeter is a universal device that can measure 8 voltages and transfer data over the internet. The inputs are fully independent.

The individual channels are measured sequentially, with only the input on which the measurement takes place being connected. This allows simultaneous measurement of different devices with different potentials.

The board also includes advanced functions for sending alerts and storing measured data in the cloud.

Technical information.

Board size: 93 x 109 mm
Power supply: + 5V to + 28V DC
Current consumption : 77 mA / 12 V
Voltmeter measurig range: 0 - 70 V DC
Voltmeter resolution : 0.01 V
Speed measurement : 1 x every 2 sec

Version v 2.5 has 8 analog inputs.

Image 1
Start working with IP voltmeter

When TCP/IP voltmeter is connected to the network and power is on... More.

Image 2
Network configuration and setup

The IP voltmeter can have both dynamic and static IP address. More...

Image 1
Block diagram

The board contains a 3.3V power supply, the processor... More...

Image 2
Voltage measurement

How to connect the measuring device to the board. Basic information. More...

Image 1
Power supply

IP voltmeter is designed for a wide range power supply... More...



Reading measured data

The IP voltmeter offers various methods to retrieve the measured data, including accessing it through a web browser, utilizing a TCP client, using an SNMP client, or reading the status.xml XML file.

IP voltmeter v2.1
Web browser

The most common way to read data is to use a web browser.

IP voltmeter v2.2
TCP server

The IP voltmeter has a built-in TCP server that listens on port 9760.

IP voltmeter v2.3
SNMP client

IP voltmeter supports SNMP protocol v2.

IP voltmeter v2.3
Reading XML file

It is a efficient way of reading the measured data.

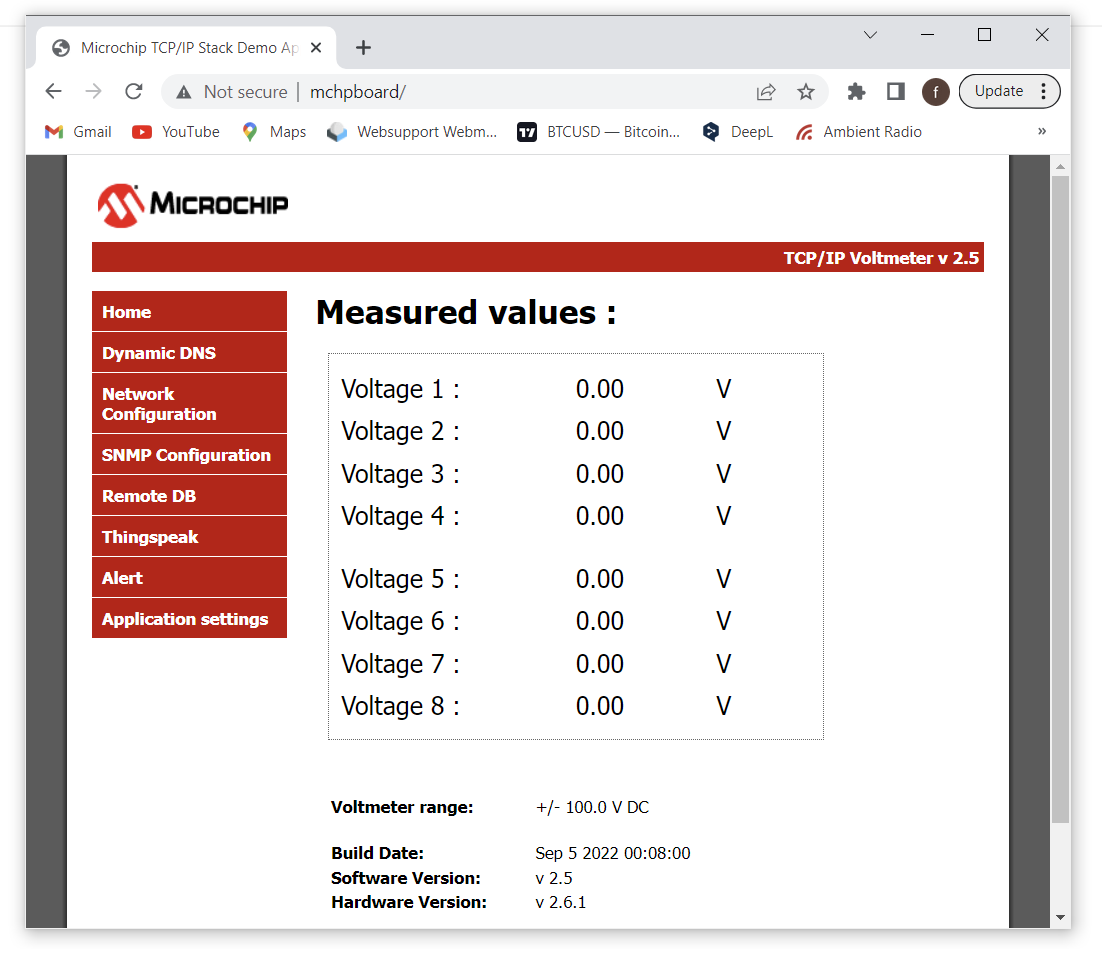

Web browser screenshots

The IP voltmeter offers various methods to retrieve the measured data, including accessing it through a web browser, utilizing a TCP client, using an SNMP client, or reading the status.xml XML file.

Web browser
Web browser
Web browser
Web browser
Web browser

Advanced functions

The IP voltmeter offers various methods to retrieve the measured data, including accessing it through a web browser, utilizing a TCP client, using an SNMP client, or reading the status.xml XML file.

Sending alert

The device allows you to send an alert if the value of any voltage reaches... Read more.

Image 1
SNMP client

Data can also be read via SNMP protocol. The device contains an SNMP...Read more.

Image 2
Remote DB

IP voltmeter contains a TCP client that can send data to a remote database...Read more.

Image 1
Cloud

Data can be sent to the Thingspeak.com cloud. The board contains... Read more.

Image 2

More information

Price : 64 USD/piece
