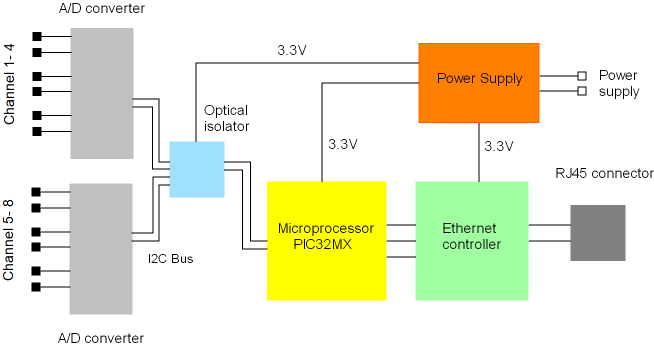

Block diagram

The board contains a 3.3V power supply that powers the entire board. Then the processor, Ethernet controller, optocoupler and 2 A/D converters.

The A/D converters are galvanically isolated from the board and the individual channels are also isolated from each other. This solution allows to use the board in various applications without grounding problems.
