TCP server

The IP voltmeter comes equipped with a TCP server on port 9760, which allows users to easily access and read data from the device.

The TCP server provides a simple interface for accessing data from individual channels, and users can connect to it using any TCP client. One of the main advantages of using the TCP server is its ease of use, as users can simply send commands to read data from specific channels.

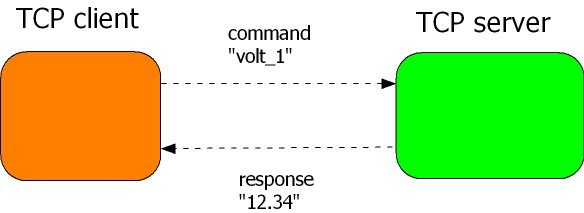

To read data from channels 1 to 8, users can send commands such as "volt_1", "volt_2", and so on up to "volt_8". The IP voltmeter will then return the measured values for the specified channels, allowing users to monitor voltage levels in real-time.

You can insert the TCP client into various applications and make your own software to monitor the measured values.
